Which Metal Fastener Best Reinforces Wood Joints: S-Rails, Bed Bolts, or Figure-8s?

When a wood joint loosens or breaks, you need a repair that restores strength without compromising the wood. Metal mechanical fasteners provide reliable reinforcement, but selecting between S-rails, bed bolts, and figure-8s requires knowing how each interacts with the material.

I’ll guide you through the pros and cons of each system, grounded in practical application and stress analysis. We will cover the hidden strength of S-rails, the adjustable tension of bed bolts, and the rotational freedom of figure-8 fasteners, along with when to use each for optimal results.

My advice comes from years of testing these fasteners in the shop, combining woodworking experience with a deep understanding of material stresses.

When Metal Becomes Your Glue: The Role of Fasteners in Structural Repair

You have a chair with a wobbly leg or a cabinet corner that’s coming apart. You reglue it, but it loosens again. This is the core problem. Traditional wood joints like mortise and tenon rely on glue and friction. When they fail, the wood fibers are often damaged or compressed. Re-gluing alone is like putting a bandage on a crack; it might not hold under stress. Wood is anisotropic—the grain direction affects strength and how joints bear load. In joinery repair, understanding wood anisotropic properties in joinery helps you choose techniques that restore true stability.

Wood and glue are excellent at handling compression forces, like the weight on a table. But they are poor at resisting tension, which is a pulling force, and racking, which is that side-to-side wobble. Understanding wood’s compression versus tension strength helps explain where joints fail and why reinforcement is often needed. Metal fasteners step in because steel and brass have high tensile strength, meaning they can withstand those pulling and twisting forces that wood cannot.

Do not confuse these with common wood screws. A deck screw holds two boards together. These specialized fasteners-S-rails, bed bolts, figure-8s-are engineered for specific jobs. They are the reinforcements for your wood joints, acting as permanent internal braces or clamps.

Comparing the Contenders: S-Rails, Bed Bolts, and Figure-8s

Choosing the right fastener saves time and makes your repair last. Here is a direct comparison to help you decide.

Fastener Type	Visual Shape & Function	Primary Force Resisted	Typical Use-Case
S-Rail	A flat, angled metal bracket. Works like an internal gusset plate.	Racking (side-to-side movement)	Reinforcing 90-degree frame corners in casework, doors, and chests.
Bed Bolt	A long bolt that passes through one piece of wood into a nut mortised into the other.	Tension (pulling forces along the bolt’s axis)	Pulling and clamping joints tightly closed, like bed posts to rails or table aprons to legs.
Figure-8 Fastener	A small, stamped metal piece shaped like an ‘8’. It acts as a pivot.	Secures while permitting wood movement (does not resist structural forces)	Attaching solid wood tabletops to frames or aprons without restricting seasonal expansion.

The S-Rail: The Heavy-Duty Corner Brace

An S-rail is a piece of stamped or bent steel that fits into a mortise across a corner joint. I think of it as a hidden metal skeleton. When you screw it in, it ties two pieces of wood together at a right angle.

The major advantage is its brute strength against racking; it can stabilize a wobbly door frame or a large cabinet carcass instantly. Some designs even have a slight curve, allowing you to draw the joint tight as you drive the screws.

But there are trade-offs. The installation mortise needs to be precise, often 1/4 inch deep or more, which requires careful chisel work. If you place it too close to the wood’s edge or use screws that are too large, you risk splitting the wood. It is also highly visible if not fully recessed and covered with a plug.

Use an S-rail when you need to rebuild the corner of a heavy blanket chest or secure the joints on a large bookcase. Drill pilot holes for the screws that are slightly smaller than the screw’s shank to prevent splitting.

The Bed Bolt: The Invisible Clamp

A bed bolt system uses a bolt, typically 1/4 inch or 5/16 inch in diameter, that runs through one wood member. It threads into a square nut that is hidden in a mortise on the adjoining piece. When you tighten the bolt, it pulls the joint together with tremendous force.

The key benefit is concealment; once installed, the bolt head can be covered with a wood plug, making the repair invisible from the outside. This makes it perfect for furniture where aesthetics matter, like a heirloom bed frame or a dining table.

The installation is complex. You need to drill a perfectly straight through-hole for the bolt and a clean, square mortise for the nut. If these are misaligned, the bolt will not seat properly or will stress the wood. I always use a drill press and a sharp chisel for this job.

This fastener is best for repairing a loose bedpost-to-rail joint or securing a wobbly table apron where you cannot have any metal showing. Apply a little wax to the bolt threads to make future disassembly easier, especially when used in areas prone to wood shrinkage.

The Figure-8 Fastener: The Pivot Point for Tabletops

A figure-8 fastener is not for structural repair. It is a solution for a different problem: wood movement. Solid wood expands and contracts across its grain with changes in humidity. If you screw a tabletop down rigidly, it can crack.

The figure-8 is a small, stamped metal piece. One hole is screwed to the frame, and the other to the tabletop. Its shape allows the screw in the tabletop to pivot slightly, giving the wood room to expand and contract while still holding it securely down. Installation is simple; just drive two screws.

Do not use it to fix a loose joint. It offers almost no resistance to racking or lifting forces. Its only job is to hold a top in place while letting it move.

Use figure-8 fasteners when re-attaching a solid wood tabletop that has split because it was originally fastened with rigid screws or blocks. Space them about 12 to 16 inches apart along the apron for even support.

The Materials and Science Behind the Metal

The metal you choose for a fastener directly controls how it performs and how long your repair holds. Think of it as matching the tool to the job’s lifetime stress and environment.

Mechanism of Action: Fighting Racking and Tension

Racking force is the diagonal twist that pushes a joint out of square. It is the main enemy of old chairs and tables. Each fastener fights this force with a different geometry.

An S-rail plate acts like a bridge brace. It screws flat across a corner to resist that diagonal twisting motion. Its broad surface area distributes stress, making it ideal for reinforcing wobbly frames.

Bed bolts work by clamping. A bolt passes through one member into a nut embedded in the other, pulling them together with immense tension. This clamping force locks the joint tight against racking.

A figure-8 fastener is a floating connector. It screws into the underside of a tabletop and slots into a base, allowing the wood to expand and contract with humidity. It manages tension by permitting movement, preventing the wood itself from cracking, unlike some rigid wood joints that bear stress directly.

Steel vs. Brass: Strength Versus Corrosion

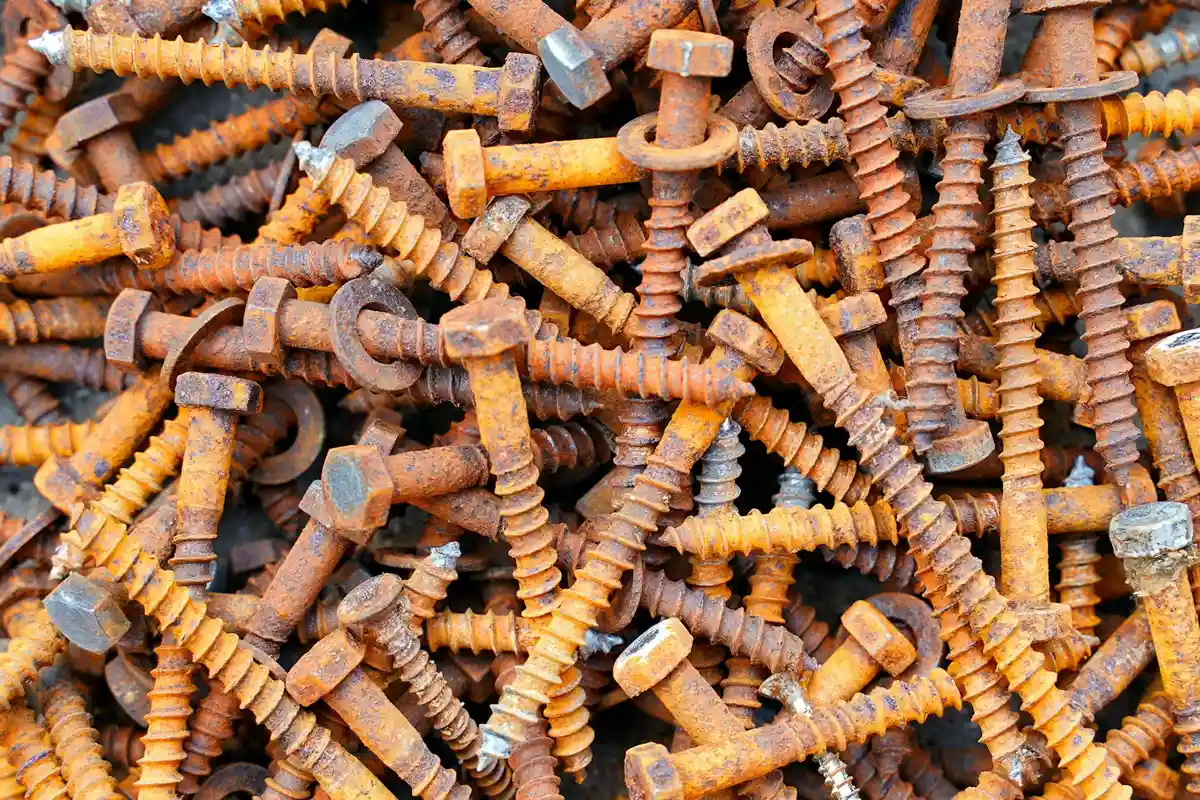

Steel is the workhorse. It is strong, inexpensive, and readily available. The trade-off is that plain steel will rust, especially where moisture is present. This rust can stain wood and weaken the fastener over decades.

Brass is the aristocrat. It does not rust, making it perfect for humid kitchens or antique restoration where stains are a disaster. Brass is softer than steel, so it is easier to strip the head if you over-tighten it. It also costs more.

For most interior structural repairs where the fastener is hidden, steel is my go-to. I save brass for visible repairs on fine furniture or for pieces that will live in a bathroom or porch. Zinc-plated steel offers a middle ground with some rust resistance, while stainless steel provides the best blend of strength and corrosion resistance for a higher price.

Visibility and Concealment: A Restorer’s Dilemma

Your choice here balances raw strength against visual appeal. The strongest fastener is useless if it ruins the look of a cherished piece.

S-rail plates are meant to be seen. They have an industrial, honest look. I use them on shop furniture or modern pieces where the hardware is part of the design.

Bed bolts can be completely hidden. You sink the bolt head into a mortise and plug it with a dowel. This makes them perfect for structural repairs on fine cabinetry where you need maximum strength but zero visual impact.

Figure-8 fasteners are always concealed. They live on the underside of tabletops. They solve the attachment problem without a single visible mark on the surface, which is why they are a restorer’s secret weapon.

Installing Fasteners Without Damaging Your Work

Metal is unforgiving. A rushed installation can split wood or create a weak point worse than the original problem. The goal is to add strength, not subtract it.

Tooling Up: What You Really Need

You can manage with hand tools, but the right tools make a clean job certain. Here is what I keep on my bench for this work.

• A Forstner bit, not a spade bit. It drills a flat-bottomed, clean hole perfect for recessing bolt heads or figure-8 plates.
• Sharp chisels for squaring up mortises or cleaning up drill holes.
• A drill press. Hand drills can wander. The press ensures your holes are perpendicular, which is critical for bed bolts to align correctly.
• The correct driver bit. Use a bit that fits the screw head perfectly to avoid cam-out and stripping.

Dull tools crush wood fibers instead of cutting them, leading to splits and a loose fit for your fastener. Your layout marks must be precise; measure from the hardware itself, not just a ruler.

Step-by-Step: The Common-Sense Sequence

Follow this order every time. It saves wood and your patience.

1. Dry-fit and clamp the joint. Assemble the pieces as they should be, using clamps to hold them perfectly in position. This is your reference state.
2. Mark fastener locations from the hardware itself. Hold the S-rail or figure-8 in place and mark its screw holes directly onto the wood. For bed bolts, mark the center point through the pre-drilled hole in the hardware.
3. Drill or mortise before disassembling. With the joint still clamped, drill your pilot holes or create mortises. The clamped wood cannot move, so your holes stay aligned.
4. Test fit the fastener. Unclamp, then place the metal hardware into its recess or hole. It should sit flush without forcing the wood.
5. Final assembly with adhesive. Apply wood glue to the joint, reassemble, and then drive the metal fasteners home. The adhesive handles the shear forces, while the metal resists racking and tension.

A common pitfall is drilling holes after taking the joint apart. Even a slight shift will misalign the holes, forcing you to elongate them and weaken the connection. The test fit step catches any error in your mortise depth or hole alignment before glue makes it permanent.

When NOT to Use a Metal Fastener

These fasteners are excellent tools. They are also frequently misapplied. Using metal reinforcement in the wrong context can weaken a joint or create a false sense of security that leads to failure. Their job is to manage specific forces, not to perform miracles on compromised material or replace proper bonding techniques.

Structural Limitations of Each Type

Every fastener is engineered for a specific kind of stress. Pushing it beyond its design scope is asking for trouble.

S-Rail

The S-rail gets its strength from being buried within the wood. This is its biggest limitation. You must have enough solid wood above and below the rail for it to anchor securely. I never use one in stock thinner than 3/4″. The mortise needs to be at least 3/8″ deep, and you need another 3/8″ of wood below it that isn’t at risk of blowing out.

I also avoid them on woods with wild, interlocked grain. Think oak or some ash. The act of chiseling the mortise and driving the screws can act as a wedge, encouraging a split along the grain line. On stable, straight-grained woods like maple or poplar, they are superb.

Bed Bolt

A bed bolt is a clamping device, not an adhesive. It requires two opposing faces to pull together. This fastener is completely useless in end grain. The threaded bolt will simply spin without biting, because end-grain wood fibers offer no lateral resistance. It’s like trying to screw into the end of a bundle of straws.

The second major constraint is access. You must be able to reach the back of the workpiece to install the nut and washer. If the piece is built into a frame or against a wall, a bed bolt is not an option. Plan your repair sequence so this access is your first step, not your last surprise.

Figure-8 Fastener

This is the most misunderstood piece of hardware in the shop. A figure-8 fastener is designed for tabletop attachment, allowing wood movement while holding the top down. It is not a structural brace. I have seen them used to “repair” a loose mortise and tenon in a chair leg. It failed within weeks.

The metal is thin and designed to pivot in its screw holes. It cannot resist racking (side-to-side) forces or sheer stress. Using one to reinforce a frame joint is like using a rubber band to hold a broken board together. It might look connected, but it provides no real strength.

Repair or Rebuild? Knowing the Difference

This is the most critical judgment call in repair work. A fastener bridges a gap or secures a sound connection. It cannot create new wood.

If the wood is soft, spongy, discolored from rot, or physically crushed, your project is no longer a repair job; it’s a reconstruction job. In historic woodwork, the aim is to preserve original woodwork material as much as possible. Replace only what’s unsalvageable to keep authenticity intact. You must cut out the bad material and splice in new, sound wood. Gluing and bolting rotten fibers is a waste of time. The decay will continue, and the fastener will simply pull through the compromised material.

Think of it like a broken bone. A cast (the fastener) holds the cleanly set break together so it can heal. If the bone is shattered or diseased, surgery (rebuilding) is needed first. Apply the same logic to wood.

Finally, always remember the hierarchy of a good joint. Your primary bond is always a proper glue joint, clamped firmly and allowed to cure fully. The metal fastener is a secondary insurance policy against future stress or to correct a minor alignment. I use them to lock in perfection after the glue has done its job, never as a substitute for it. In my shop, we have a rule: if the joint isn’t strong enough with just glue, it’s not ready for a metal fastener. Fix the joint first.

FAQ: Metal Fasteners for Joinery Reinforcement

How do the installation methods and required tooling differ between S-rails, bed bolts, and figure-8 fasteners?

S-rails require a precise, chisel-cut mortise and a drill/driver, while bed bolts need a drill press for accurate through-holes and a chisel for a square nut mortise. Figure-8 fasteners only need a drill/driver and possibly a Forstner bit for countersinking, offering the simplest installation.

What are the key advantages and disadvantages of using S-rails for structural reinforcement compared to bed bolts and figure-8 fasteners?

S-rails provide superior resistance to racking forces in frames but require significant, precision mortising that risks splitting thinner stock. Bed bolts offer higher tensile clamping force and concealment, while figure-8s are unsuitable for structural reinforcement, serving only to accommodate wood movement.

How do figure-8 fasteners function to stabilize joints, and what are their limitations compared to S-rails and bed bolts?

Figure-8 fasteners act as pivoting connectors, allowing for wood’s seasonal expansion and contraction across the grain. Their key limitation is a lack of structural strength; they provide minimal resistance to racking or tensile forces, unlike the purpose-built S-rails and bed bolts.

Are there specific wood types, joint types, or furniture styles where one fastener is recommended over the others?

Use bed bolts for traditional frame-and-panel or post-and-rail furniture where concealed, high-tension clamping is needed. S-rails suit casework and cabinets with thick corner joints, while figure-8s are exclusive for attaching solid wood tops to frames in any style to prevent cracking.

What are the best practices for installing each fastener to ensure maximum structural integrity without damaging the existing wood?

Always clamp the joint perfectly before marking and drilling to guarantee alignment. For S-rails and bed bolts, drill pilot holes to prevent splitting, and for bed bolts, ensure the bolt axis is perpendicular to the joint face to avoid inducing cross-grain stress.

Choosing the Right Fastener for the Job

The core lesson is to match the metal fastener to the wood’s behavior. Wood moves with seasonal humidity, and your repair must accommodate that movement or it will fail. I use S-rails to stiffen a wobbly cabinet back where racking is the issue. For a bed frame that may need future disassembly, bed bolts are my go-to solution. Figure-8 fasteners work well for attaching a solid wood top, but only if you correctly mortise them to allow for expansion.

Select fasteners made from recycled steel or aluminum to support sustainable material cycles. Your best tool is always knowledge of wood science, which leads to durable repairs and less waste.
